Max. flow rate 760 l/h
Max. working pressure 140 bar
Standard voltage 230 V

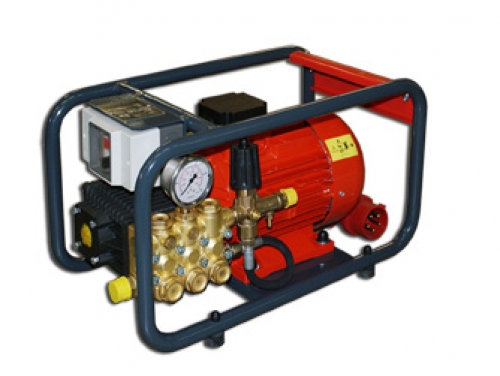

Oertzen C140-12 E
Cold water high-pressure cleaner for industrial use
Max. flow rate 760 l/h
Max. working pressure 140 bar
Standard voltage 230 V
Professional upgrade for high-pressure cleaning
The powerful and efficient Oertzen C140-12 E can be upgraded with a wide range of practical options, such as a flat jet nozzle with a 65-degree spraying angle. Thus equipped, the Oertzen C140-12 E can be used for a variety of tasks – from abrasive blasting and container cleaning to cleaning facades and floors.
- Three-cylinder in-line piston pump, flange-mounted with electric motor
- Motor/pump speed: 1,450 rpm
- Can be upgraded with the Oertzen H.B 250 heating module for hot water generation
Technical details

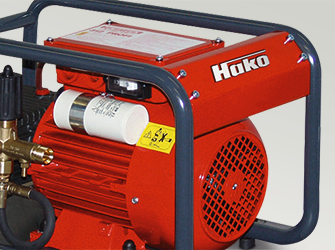

Frame
- Heavy-duty circumferential frame, powder-coated

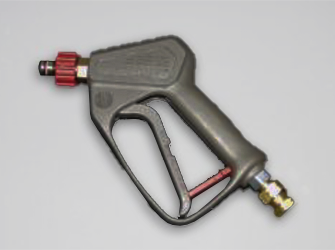

Unit safety
- Depressurised stand-by mode when the spray gun is closed
- CE-certified device

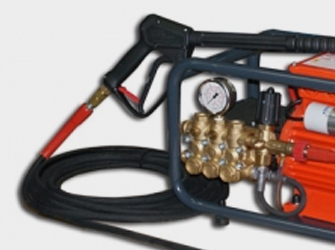

Pump system
- Motor and pump are slow-running and quiet
- Ideal for noise-sensitive cleaning situations

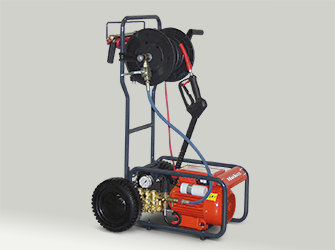

Trolley
- Can be optionally upgraded with a trolley
Motor and pump performance
- 230 V/1~50 Hz
- Max. working pressure 140 bar / 2030 psi
Features
- 3 cyl. inline plunger pump 12 l/min / 3.2 gal/min, flanged to electric motor
- brass pump head, ceramic plungers
- motor/pump rpm 1,420 1/min
- slowly, quietly running machine
- pump system pressureless by closing spray pistol (stand by operation)
- motor/pump unit protected by solid, surrounding steel frame (powder coated)
Standard equipment
- double lance 490 mm / 19 in (710.700.021)
- HIP flat stream nozzle 3538 (710.743.538)
- flat stream nozzles with 15/25/40/65° spray angle optional
- high pressure security pistol 310 bar / 4495 psi 1/4" with insulated handle 560 mm / 22 in (710.700.003) and swivel joint (710.708.057)
- JET high pressure safety hose NW 8, 10 m / 33 ft (710.702.067)

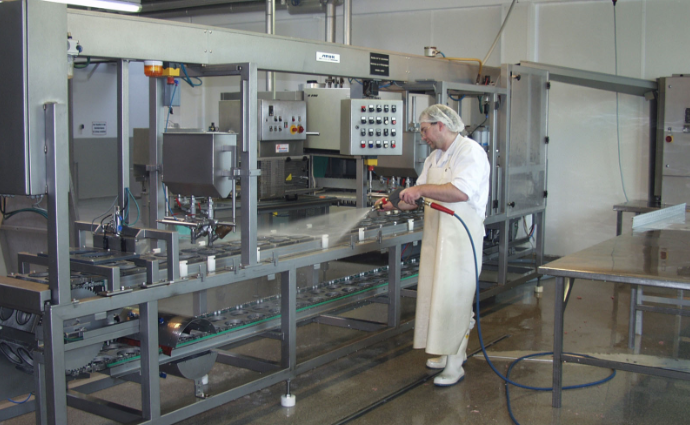

Application range
- abrasive blasting
- container cleaning
- floor cleaning
- facade cleaning
- high pressure cleaning
- industrial cleaning
- commercial cleaning
- drain cleaning
710.000.879
Initial current limiter 230 V / 50 Hz
prevents triggering of fast fuses when starting electric motor of high pressure cleaner
Product request
710.800.370
Turbo floor cleaner BRW 350 VA/R (250 bar)
floor cleaning device, INOX, for slip-free floors and other traffic areas, removal of oil from floors
- working width 350 mm / 14 in
- max. 250 bar / 3625 psi
- hot water max. 150 °C / 302 °F
- rotary nozzle elements for high surface cleaning capacity
- easy coupling to hp cleaner
Product request
710.700.020
Double lance, 380 mm / pressure regulation, VA
- with pressure regulation
- 350 bar / 5075 psi
- INOX
- length 380 mm / 15 in
- no-tool coupling
- HIP flat stream nozzle
- nozzle protection cap
Option: Ex-design – for use in explosion endangered areas
Product request
710.700.021
Double lance, 490 mm / pressure regulation, VA
- with pressure regulation
- 350 bar / 5075 psi
- INOX
- length 490 mm / 19.3 in
- no-tool coupling
- HIP flat stream nozzle
- nozzle protection cap
Option: Ex-design – for use in explosion endangered areas
Product request
710.700.022
Double lance, 660 mm / pressure regulation, VA
- with pressure regulation
- 350 bar / 5075 psi
- INOX
- length 660 mm / 25.7 in
- no-tool coupling
- HIP flat stream nozzle
- nozzle protection cap
Option: Ex-design – for use in explosion endangered areas
Product request
710.708.057

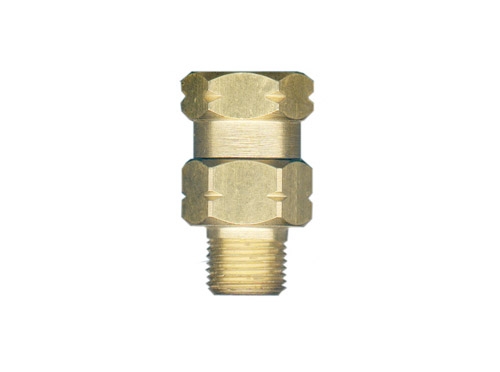

Swivel joint, 1/4” / 330 bar, brass
- 330 bar / 4786 psi
- brass
- mounted between pistol and hose
- revents coiling up of hose
Product request
710.000.193

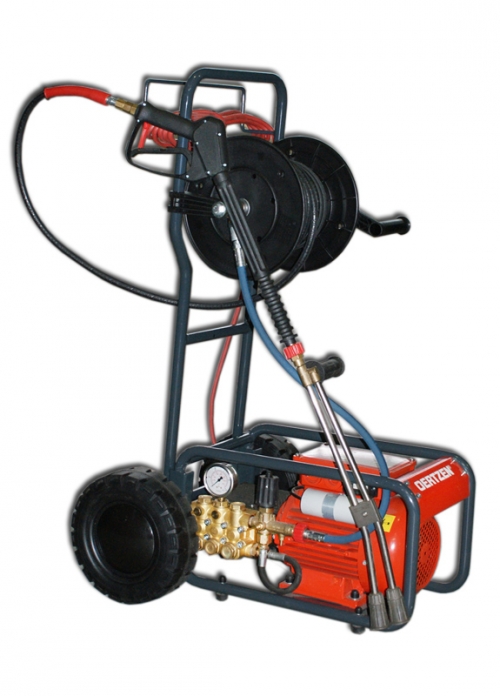

Profi chassis C170-9 E/C140-12 E
Trolley for OERTZEN cold water high pressure cleaner C170-9 E/C140-12 E
- mobile, capable of climbing stairs, practical
- simply to be coupled to short side of frame
- Ill. shows trolley/wheel barrow with C170-9 E and spray equipment and Option: hose reel with drain cleaning hose
Product request
710.703.083
GEKA coupling, brass / 1 1/4” ID
Brass, for fastening and connecting water hoses
Product request
710.703.091
GEKA grommet, brass / 3/4” SL
brass, for connection of water hoses with high pressure cleaners or hydro extraction vacs, and also for extending water hoses
Product request
710.704.952
High pressure lance, 800 mm / 500 bar, VA
- high pressure lance (single jet pipe)
- 500 bar / 7250 psi
- INOX
- 800 mm / 31.5 in length
- with side support handle
- no-tool coupling
Product request
710.700.003

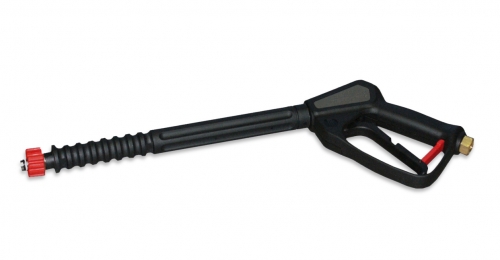

HP safety gun, 310 bar, insulated grip
- ergonomically shaped
- thermally insulated
- impact-resistant housing made of glass fibre reinforced Makrolon
- lockable in closed position
Product request
710.703.131
HV removable nipple, 1/4” ID x OE2, brass
Manual screw connection interchangeable nipple (hose connector for PANZERJET high-pressure safety hose) 1/4” ID x OE2, brass
Product request
710.702.067
JET 10 m HP hose, 300 bar ISO
JET high pressure safety hose
- 1/4"
- nominal diameter 8
- max. 300 bar / 4350 psi
- 150 °C / 302 °F
- 10 m / 33 ft, ISO
Product request
710.702.054
JET 15 m HP hose, 300 bar ISO
JET high pressure safety hose
- 1/4"
- nominal diameter 8
- max. 300 bar / 4350 psi
- 150 °C / 302 °F
- 15 m / 49 ft, ISO
Product request
710.702.055
JET 20 m HP hose, 300 bar ISO
JET high pressure safety hose
- 1/4"
- nominal diameter 8
- max. 300 bar / 4350 psi
- 150 °C / 302 °F
- 20 m / 65.6 ft, ISO
Product request
710.702.069
JET 30 m HP hose, 300 bar ISO
JET high pressure safety hose
- 1/4"
- nominal diameter 8
- max. 300 bar / 4350 psi
- 150 °C / 302 °F
- 30 m / 98.4 ft, ISO
Product request
710.702.114
JET 40 m HP hose, 300 bar ISO
JET high pressure safety hose
- 1/4"
- nominal diameter 8
- max. 300 bar / 4350 psi
- 150 °C / 302 °F
- 40 m / 131 ft, ISO
Product request
710.702.200
JET 50 m HP hose, 300 bar ISO
JET high pressure safety hose
- 1/4"
- nominal diameter 8
- max. 300 bar / 4350 psi
- 150 °C / 302 °F
- 50 m / 164 ft, ISO
Product request
710.702.201
JET 60 m HP hose, 300 bar ISO
JET high pressure safety hose
- 1/4"
- nominal diameter 8
- max. 300 bar / 4350 psi
- 150 °C / 302 °F
- 60 m / 197 ft, ISO
Product request
710.700.023
Push & pull lance, 600 mm
made of stainless steel for infinitely variable adjustment of the bending angle from 20 to 140°
- e.g. for underbody cleaning, roofs or other areas difficult to access
- max. 210 bar / 3046 psi
- 150 °C / 302 °F
- 600 mm / 23.6 in length
- 1/4"
- hand nut connection
Handle bar (please always order additionally 710.700.024) locks lance in chosen bending angle, left or right hand side position.
Product request
710.800.269
Soft sandblaster MONSUN 045
small-area water-sandblaster, for abrasive surface treatment such as concrete repair, decoating, derusting
- pressure range 100 – 500 bar / 1450 – 7250 psi
- for most effective blasting with lowest possible consumption of blasting agent
- with 10 m / 33 ft suction hose and duplex suction pipe for blasting agent
Product request
710.800.285
Sandblaster MONSUN-VARIO 040
surface-protective granulate blasting system for all sensitive natural and artifical stone surfaces, facades, ornaments, monuments
- pressure range 5 – 250 bar / 72 – 3625 psi
- variable adjustment of blasting pressure, water flow and granulate consumption directly at the pistol
- with 10 m / 33 ft suction hose and duplex suction pipe for blasting agent
Product request
710.800.225
Wet overalls, size 46/48
- size M (46/48)
- water-proof polyamide fiber with zipper and velcro fastener on sleeves and trousers
- durable
- colour: orange-red
Product request
710.800.226
Wet overalls, size 50/52
- size L (50-52)
- water-proof polyamide fiber with zipper and velcro fastener on sleeves and trousers
- durable
- colour: orange-red
Product request
710.800.227
Wet overalls, size 54/56
- size XL (54-56)
- water-proof polyamide fiber with zipper and velcro fastener on sleeves and trousers
- durable
- colour: orange-red
Product request
710.800.228
Wet overalls, size 58/60
- size XXL (58-60)
- water-proof polyamide fiber with zipper and velcro fastener on sleeves and trousers
- durable
- colour: orange-red
Product request
710.801.099
OSP Special Hypoid Pump Oil, 1 l canister
OSP Special Hypoid Pump Oil
- 1 l / 0.26 gal canister
- for OERTZEN high pressure axial piston pumps, first oil change after 50 working hours, all further oil changes after 500 working hours respectively at least once a year
to maintain the warranty use OSP Special Hypoid Pump Oil only
Product request
710.802.003
OSP Special Hypoid Pump Oil, 5 l canister
OSP Special Hypoid Pump Oil
- 5 l / 1.3 gal canister
- for OERTZEN high pressure axial piston pumps, first oil change after 50 working hours, all further oil changes after 500 working hours respectively at least once a year
to maintain the warranty use OSP Special Hypoid Pump Oil only
Product request
710.701.003
PVC hose, 13 mm, fabric-mesh reinforced (sold by the metre)
Suction hose for sand blasting agent made of PVC
- fabric-mesh reinforced
- diameter 13 mm / 0.5 in
- sold by the meter
Product request
710.800.055

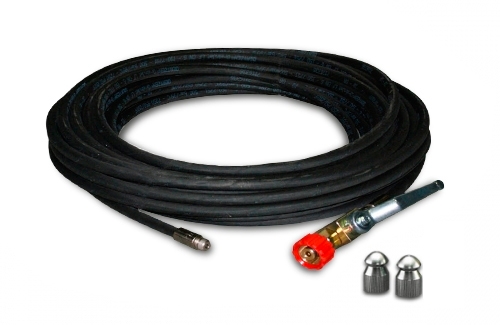

Drain cleaning set, 32 m DRAINJET C170-9 E 1/4”
for removal of blockings, grease and sand in drains up to 200 mm / 7.8 in diameter
- with high pressure pipe cleaning hose DRAINJET6
- 32 m / 105 ft hose lengths
- low-friction surface
- ND 6
- tangle-free press connections
- manually exchangeable rocket nozzle and rocket drill-nozzle 1/4"
- ball valve
Product request
710.702.259
Drain cleaning hose, DN 5 / 7 m, 200 bar, 1/8”
- drain cleaning hose
- nominal diameter 5
- 1/8"
- length 7 m / 23 ft
- 200 bar / 2900 psi
Product request
710.702.258
Drain cleaning hose, DN 5 / 10 m, 200 bar, 1/8”
- drain cleaning hose
- nominal diameter 5
- 1/8"
- length 10 m / 33 ft
- 200 bar / 2900 psi
Product request
710.702.260
Drain cleaning hose, DN 5 / 15 m, 200 bar, 1/8”
- drain cleaning hose
- nominal diameter 5
- 1/8"
- length 15 m / 49 ft
- 200 bar / 2900 psi
Product request
710.702.262
Drain cleaning hose, DN 5 / 20 m, 200 bar, 1/8”
- drain cleaning hose
- nominal diameter 5
- 1/8"
- length 20 m / 66 ft
- 200 bar / 2900 psi
Product request
710.702.261
Drain cleaning hose, DN 5 / 35 m, 200 bar, 1/8”
- drain cleaning hose
- nominal diameter 5
- 1/8"
- length 35 m / 115 ft
- 200 bar / 2900 psi
Product request
710.702.250
Drain cleaning hose / red, DN 6 / 11 m (300 bar), 1/4”
- drain cleaning hose
- nominal diameter 6
- 1/4"
- red colour
- length 11 m / 36 ft
- 300 bar / 4350 psi
- super smooth and light
Product request
710.702.251
Drain cleaning hose / red, DN 6 / 22 m (300 bar) 1/4”
- drain cleaning hose
- nominal diameter 6
- 1/4"
- red colour
- length 22 m / 72 ft
- 300 bar / 4350 psi
- super smooth and light
Product request
710.702.252
Drain cleaning hose / red, DN 6 / 32 m (300 bar) 1/4”
- drain cleaning hose
- nominal diameter 6
- 1/4"
- red colour
- length 32 m / 105 ft
- 300 bar / 4350 psi
- super smooth and light
Product request
710.702.253
Drain cleaning hose / red, DN 6 / 42 m (300 bar) 1/4”
- drain cleaning hose
- nominal diameter 6
- 1/4"
- red colour
- length 42 m / 138 ft
- 300 bar / 4350 psi
- super smooth and light
Product request
710.702.350
DRAINJET6 hose, 11 m / 500 bar, 1/4”
- 1/4"
- for high-pressure pipe cleaning
- nominal diameter 6
- super smooth
- length 11 m / 36 ft
- max. 500 bar / 7250 psi
Product request
710.702.351
DRAINJET6 hose, 22 m / 500 bar, 1/4”
- 1/4"
- for high-pressure pipe cleaning
- nominal diameter 6
- super smooth
- length 22 m / 72 ft
- max. 500 bar / 7250 psi
Product request
710.702.352
DRAINJET6 hose, 32 m / 500 bar, 1/4”
- 1/4"
- for high-pressure pipe cleaning
- nominal diameter 6
- super smooth
- length 32 m / 105 ft
- max. 500 bar / 7250 psi
Product request
710.702.353
DRAINJET6 hose, 42 m / 500 bar, 1/4”
- 1/4"
- for high-pressure pipe cleaning
- nominal diameter 6
- super smooth
- length 42 m / 138 ft
- max. 500 bar / 7250 psi
Product request
710.721.408
Mini rocket drill nozzle, 4 x 0.8 / 1/8”
drain cleaning rocket drill nozzle Mini, 1/8", bore 4 x 0.8 mm for high pressure drain cleaning, max. 200 bar / 2900 psi
Product request
710.800.010
Rotor brush (long-hair)
rotating by water pressure for easy cleaning of smooth surfaces, in connection with spray lance extensions (300 - 1,500 mm / 12 - 58 in)
Product request
710.800.350
Mobile sand container with TORNADO suction grip
sand-/blasting agent container
- 80 litres
- with sand suction group
- mobile
Product request
710.800.259
Sand suction nipple (1x)
Wear part, connects water-sand blasting nozzle via PVC hose with blasting agent container
Product request
710.800.410
High pressure sludge pump 05
A sludge pump connected to the high pressure cleaner pumps sludge and fluids up to a height of 5 m according to the Venturi principle (partial vacuum – the flow rate depends on the capacity of the high pressure cleaner).
- residue-free suction
- for tanks, barrels, pits, shafts, etc.
- suction hose diameter 1 1/2”
- hose length 3.5 m / 11.5 ft
Product request
710.800.769
Hose reel 300 bar, max. 60 m
for 30 m / 98 ft PANZERJET high pressure hose or 60 m / 197 ft JET high pressure hose
- execution in steel
- varnished
- high quality swivel
Product request

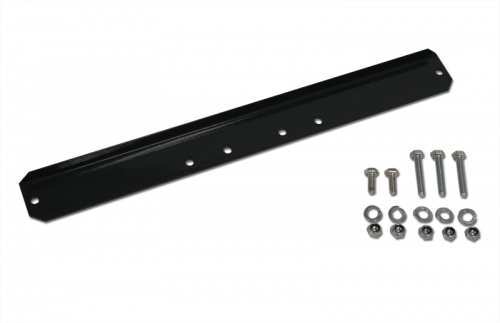

710.000.767
Add-on set for 710.000.193 to 710.800.769
for steel hose reel 300 bar, max. 60 m 710.800.769
on hose reel trolley, 300 bar for C170-9 E/C140-12 E
Product request

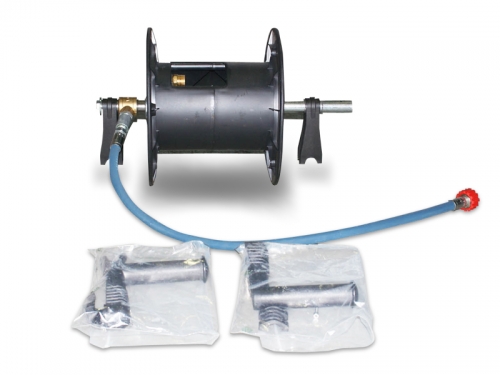

710.000.194
Hose reel with add-on set for C170-9 E/C140-12 E
- 250 bar / 3626 psi
- plastic
- for 20 m / 66 ft high pressure hose
- only in connection with wheel barrow 710.000.193 for OERTZEN cold water hp cleaner C170-9 E/C140-12 E
Product request
710.800.777
Hose reel, portable, for high-pressure trailer
for 20 m / 66 ft high pressure hose
- plastic
- with metal handle
- portable
- pic. shows optional PANZERJET high pressure hose (option)
Product request
710.700.031
Single lance, 800 mm, VA
- 400 bar / 5800 psi
- 800 mm / 31 in
- no-tool coupling
- without nozzle
- nozzle attachment and nozzle protector
Product request
710.704.120
Spray lance, 300 mm / extension
- no-tool coupling
- INOX
- 300 mm / 11.8 in (without nozzle)
- also as an adapter for turbo milling cutters and abrasive nozzles
Product request
710.704.125
Spray lance, 600 mm / extension
- no-tool coupling
- INOX
- 600 mm / 23.6 in (without nozzle)
- also as an adapter for turbo milling cutters and abrasive nozzles
Product request
710.704.121
Spray lance, 800 mm / extension
- no-tool coupling
- INOX
- 800 mm / 31.5 in (without nozzle)
Product request
710.704.122
Spray lance, 1,200 mm / extension
- no-tool coupling
- INOX
- 1200 mm / 47 in (without nozzle)
Product request
710.704.123
Spray lance, 1,500 mm / extension
- no-tool coupling
- INOX
- 1500 mm / 58 in (without nozzle)
Product request
710.704.124
Support grip for 1/4” lance, 330 bar
Product request
710.800.352
TORNADO safety helmet, complete, red
with wire mesh visor, ear protectors and protective goggles
Product request
710.758.045
Turbo blaster 045 (200 bar) 22°
special nozzle with rotating spot jet to achieve high impact pressure, excellent knock-out and flushing effect,
for high-pressure cleaners up to 200 bar / 2900 psi working pressure
Product request
710.756.045
Turbo blaster 045 (400 bar)
special nozzle with rotating spot jet to achieve high impact pressure, excellent knock-out and flushing effect,
for high-pressure cleaners up to 400 bar / 5800 psi working pressure
Product request
710.701.021
Water hose 3/4” / 20 bar, EPDM (sold by the metre)
- quality water hose 3/4" inner diameter
- sold by the metre
- multi-layer braided textile sleeving max. 20 bar / 290 psi
- internal and external rubber made of EPDM
- max. 120°C / 248°F
- resistant to oil and chemicals
- other lengths and diametres on request
- also with GEKA bajonet coupling on both ends available
Product request
Please note
on request
Safety Control Stop
switches motor off during long periods of standby
on request
Special voltage 230 V / 1~60 Hz
- alternating current motor
- single-phase
- frequency 60 Hz
- supplied without plug
on request
Special voltage 400 V / 3~50 Hz
- three-phase motor
- three-phase
- frequency 50 Hz
on request
Special voltage 200 V / 1~60 Hz
- export version
- supplied without plug
on request
Thermo valve
prevents the machine from overheating in stand-by mode
Flow rate max.
760 l/h / 201 gal/h
Unloading pressure
160 bar / 2320 psi
Working pressure max.
140 bar / 2030 psi
Water temperature max.
cold water
Standard voltage
230 V/1~50 Hz
Pump speed
1,420 1/min
Power source
electric motor
Connecting power
3.5 kW
Thermo valve
option
Safety Control Stop SCS
option
Dimensions (frame: L x W x H)
500 x 280 x 310 mm / 19.5 x 10.9 x 12.1 in
Weight
34.5 kg / 76 lb
Order number
710.000.302
Please notice
technical data are subject to alterations
