Hako dosing and
filling systems

For more efficiency in use
of scrubber-driers

No matter whether used individually or in combination with each other: Hako dosing and filling systems contribute to a time-saving, efficient and environmentally-friendly use of Hako’s scrubber-driers.

Effiziente Bodenreinigung im Krankenhaus mit innovativer Reinigungsmaschine

Incorrect dosing leads to less-than-perfect cleaning results. Overdosing puts additional strain on the materials, contaminates the waste water, and increases the costs for cleaning detergents. Hako’s dosing systems prevent under- or overdosing and the negative impacts thereof.

Schnelles und Präzises Befüllen von Reinigungsmaschinen mit unserem Dosiersystem

Filling the solution tank is time-consuming and ties the operator to the machine, which means losing valuable working time. Hako’s filling systems allow using filling times more effectively and also shortening them significantly.

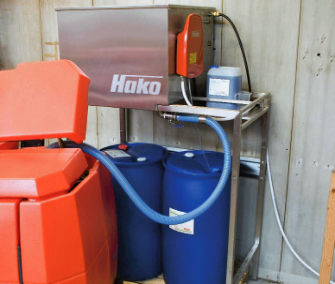

Schnelles und effizientes Befüllsystem für Reinigungsmaschinen – Fast-Fill-System von Hako

FastFill filling system:

Hako’s FastFill filling system is particularly suited for applications requiring large amounts of water or jobs that leave little time for re-filling the tank. It consists of either a 150 or 300-litre tank and is very easy to handle. FastFill fills the tank at 120 litres/ minute. A dosing unit guarantees the correct mixing ratio of machine-suitable cleaning detergents.

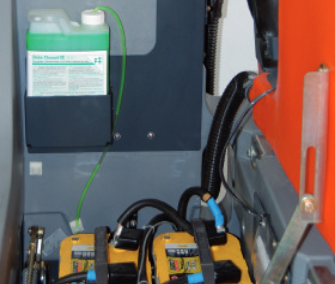

Integriertes Onboard-Dosiersystem für präzise Reinigungslösungen – Effiziente Wartung mit Hako

Save cleaning detergents with Hako’s on-board dosing system

The on-board dosing system is equipped with a variable speed pump. The amount of cleaning detergents added to the system depends on the amount of water supplied. The concentration is infinitely adjustable and remains constant. This reliably prevents over- or under-dosing, even when the operator increases or reduces the amount of water supplied. This system can also be used with machines that are not equipped with a water pump.

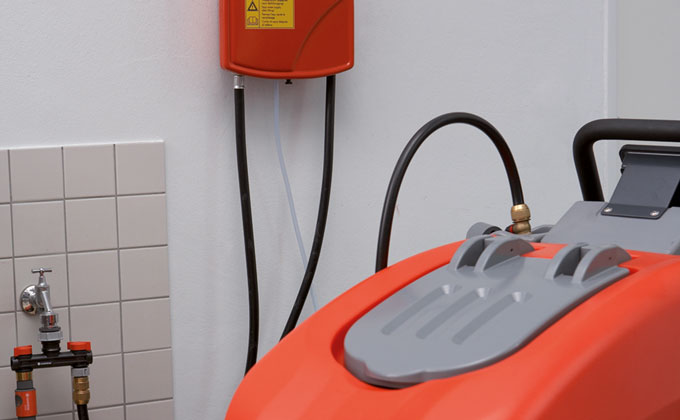

Automatisches Dosier- und Befüllsystem für professionelle Reinigungsmaschinen

Automatic dosing –
simply practical

Our automatic, wall-mounted dosing system works according to the Venturi principle: When opening the water tap, the cleaning chemicals are added to the water with negative pressure via a separate hose. The amount of chemicals supplied is defined by a measuring pin. The DVGW-compliant system is equipped with a non-return valve to prevent contaminated water from flowing back into the mains system.

Your benefits when using Hako’s automatic dosing systems

Easy, space-saving wall mounting
Prevents under- or overdosing – no matter how much water is used in the process
User-friendly handling
Perfect for all machine-suitable cleaning detergents and container sizes
Suitable for all scrubber-driers
Can be adjusted to different mixing ratios
No electronics and no additional space required on board the machine

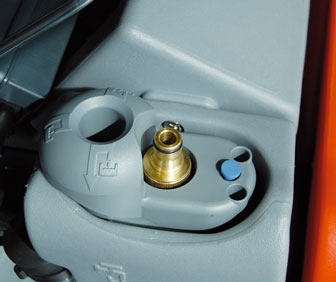

Automatisches Befüllsystem für effiziente Reinigungsmaschinen-Nutzung

Automatic filling – ensures more efficient working

To provide automatic filling, the hose is connected to the scrubber-drier via a plug coupling. When the solution tank has been completely filled, a float switch stops the water supply. Instead of having to stay with the machine, the operator can use the filling time to carry out other tasks, which ensures a more efficient utilisation of staff capacities.

Your benefits when using Hako’s filling systems

Ancillary activities can be carried out during the filling process
No laborious set-up times
Both automatic and conventional filling with a hose is possible
