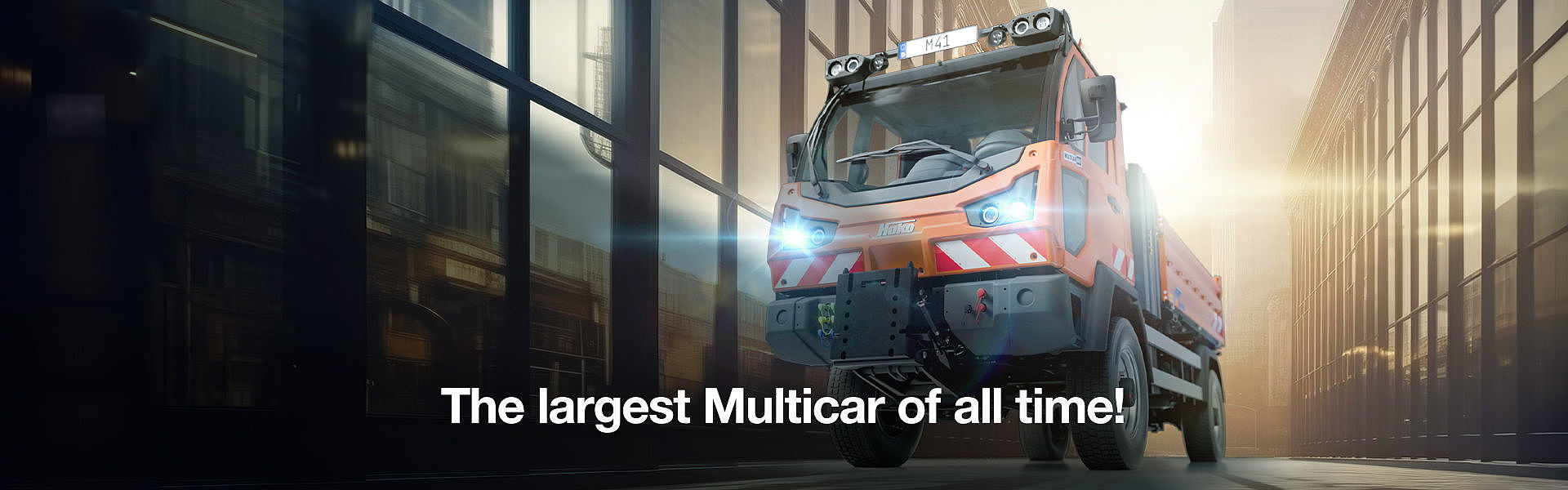

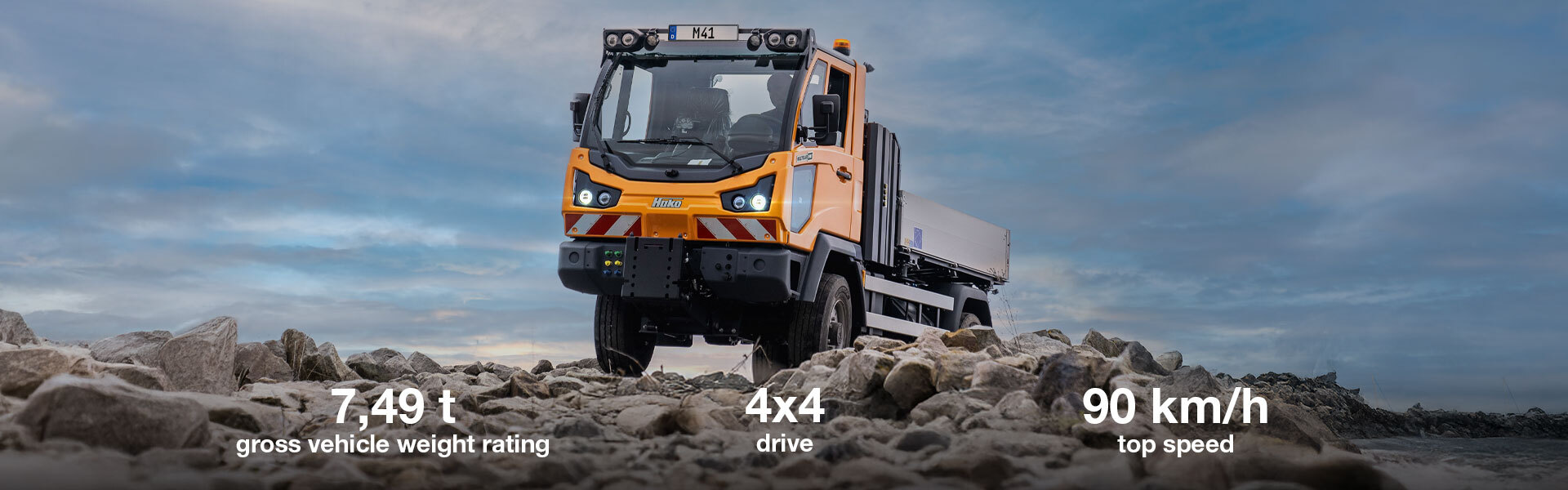

Multicar M41

Load and implement carrier in the 7.5-t class

High driving comfort due to
power-split transmission

High payload
of up to 4.25 t

Universally usable interfaces
for year-round use

The more varied the requirements of the most diverse areas of work, the more economical it is to have solutions available that cover a wide range of applications. The Multicar M41 proves that even vehicles with a gross weight of up to 7.49 tonnes can be compact, manoeuvrable and flexible. Thanks to its power-split transmission and high payload of up to 4.25 tonnes, the machine can handle even the biggest challenges in municipal year-round use with high performance, excellent comfort and low fuel consumption.

  • Operating weight of up to 7.49 t
  • Powerful, efficient diesel engine with 129 kW (175 hp)
  • Sophisticated travel drive for intelligent power distribution and stepless driving
  • Manoeuvrable with all-wheel drive and all-wheel steering (optional)
  • Electric parking brake and hill-hold function

Hydrostatic or mechanical?
With the Multicar M41: both!

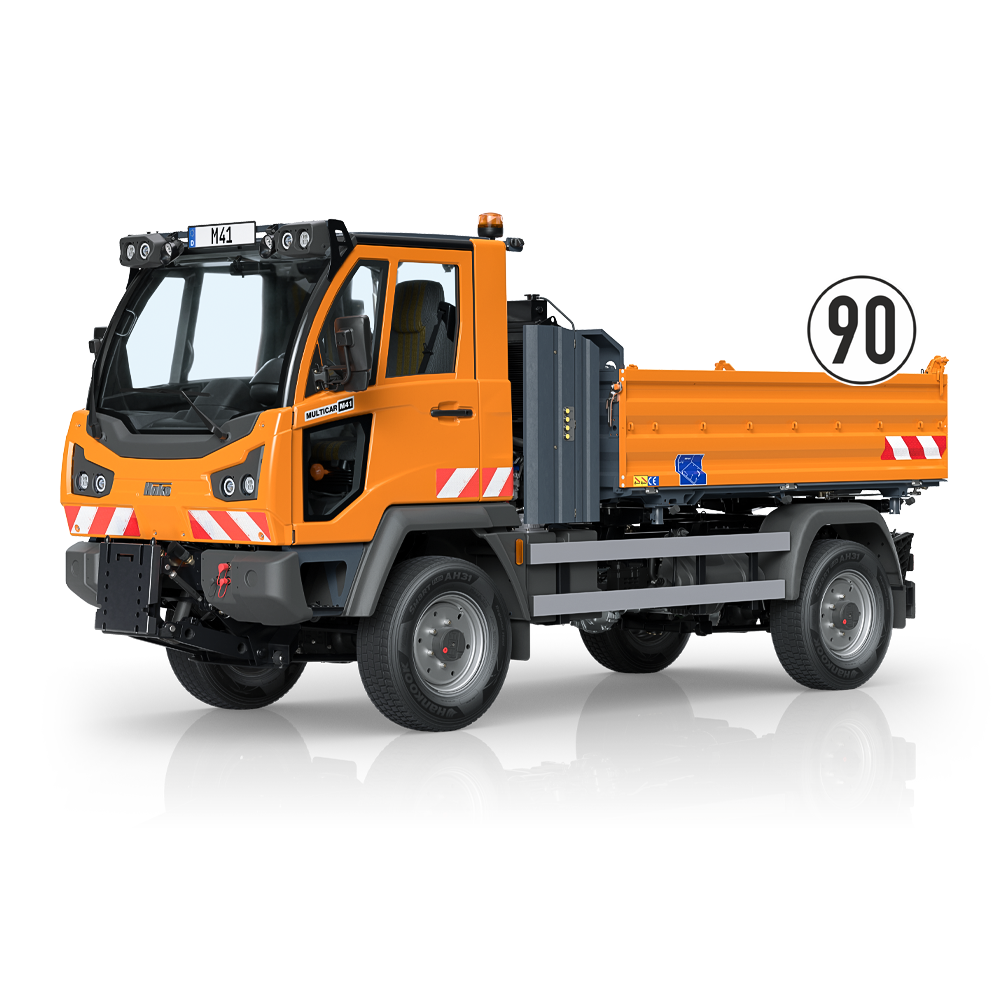

The power-split transmission of the Multicar M41 enables both the finely metered hydrostatic drive at low speeds and the mechanical drive with increased efficiency at high speeds. The powerful diesel engine with an output of 129 kW (175 hp) ensures a top speed of up to 90 km/h. And the permanent connection between the drive motor and wheels enables uphill and downhill travel without interrupting traction.

Hydrostatic or mechanical?
With the Multicar M41: both!

The power-split transmission of the Multicar M41 enables both the finely metered hydrostatic drive at low speeds and the mechanical drive with increased efficiency at high speeds.

Hydrostatic or mechanical?
With the Multicar M41: both!

The power-split transmission of the Multicar M41 enables both the finely metered hydrostatic drive at low speeds and the mechanical drive with increased efficiency at high speeds. The powerful diesel engine with an output of 129 kW (175 hp) ensures a top speed of up to 90 km/h. And the permanent connection between the drive motor and wheels enables uphill and downhill travel without interrupting traction.

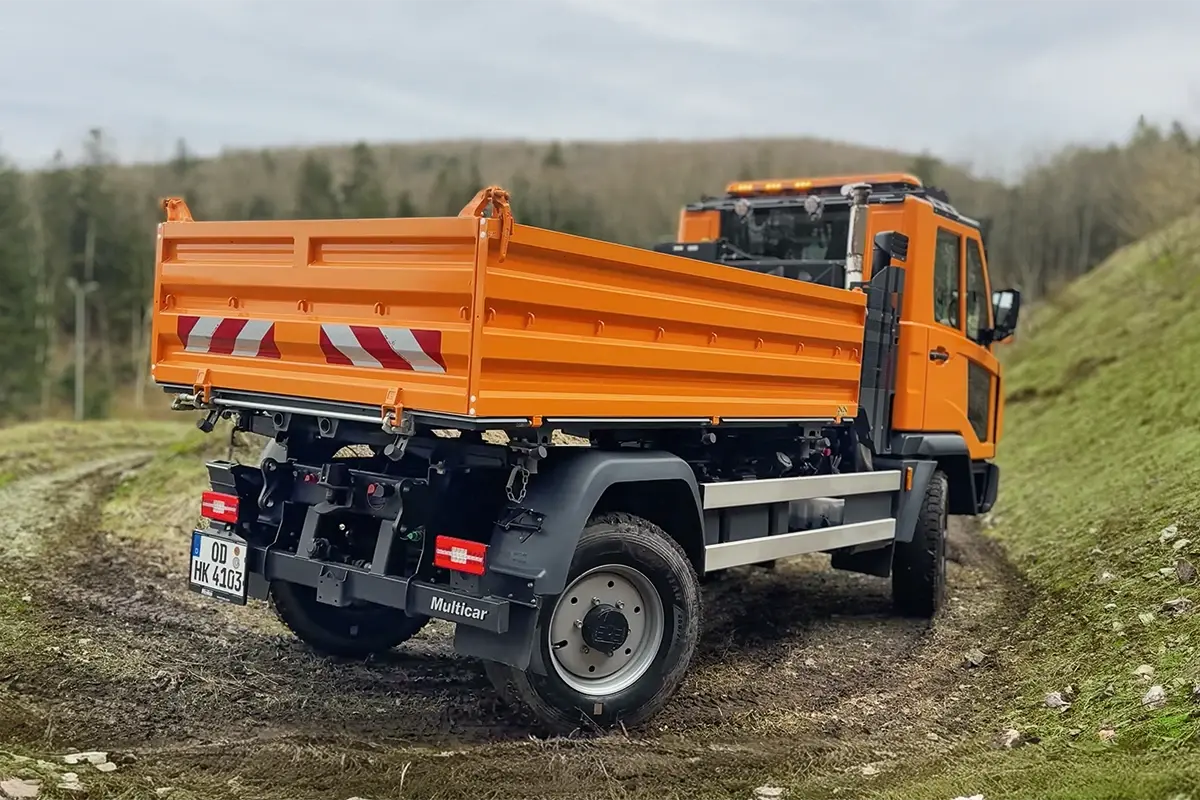

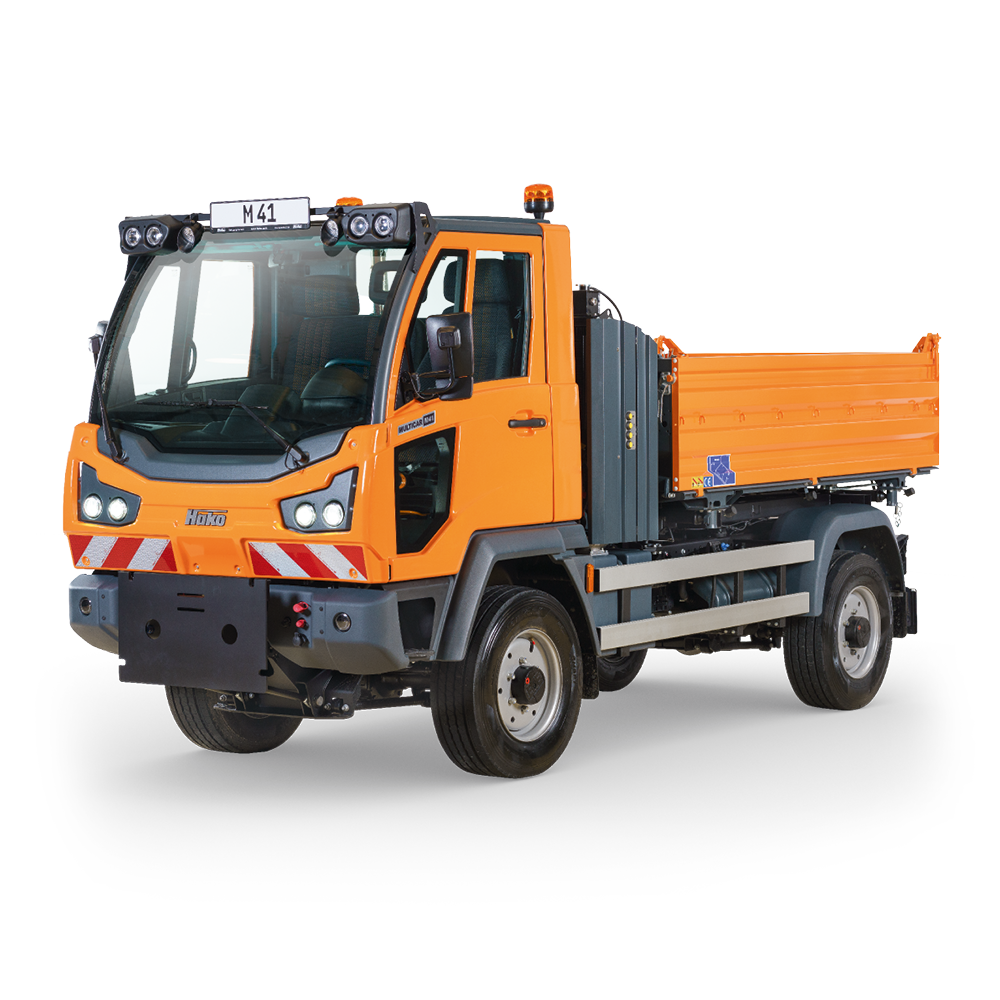

The Multicar M41 can be unloaded in any direction!

As a three-way tipper, the Multicar M41 is flexible, for example for use on construction sites or for transporting bulk goods. The large loading bed with pendulum board wall at the rear can be unloaded in any direction. Thanks to its width of just 1.75 m and small turning circle, manoeuvring is extremely easy, even in confined spaces.

The Multicar M41 can be unloaded in any direction!

As a three-way tipper, the Multicar M41 is flexible, for example for use on construction sites or for transporting bulk goods.

The Multicar M41 can be unloaded in any direction!

As a three-way tipper, the Multicar M41 is flexible, for example for use on construction sites or for transporting bulk goods. The large loading bed with pendulum board wall at the rear can be unloaded in any direction. Thanks to its width of just 1.75 m and small turning circle, manoeuvring is extremely easy, even in confined spaces.

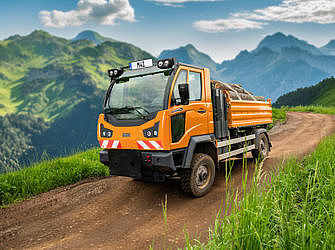

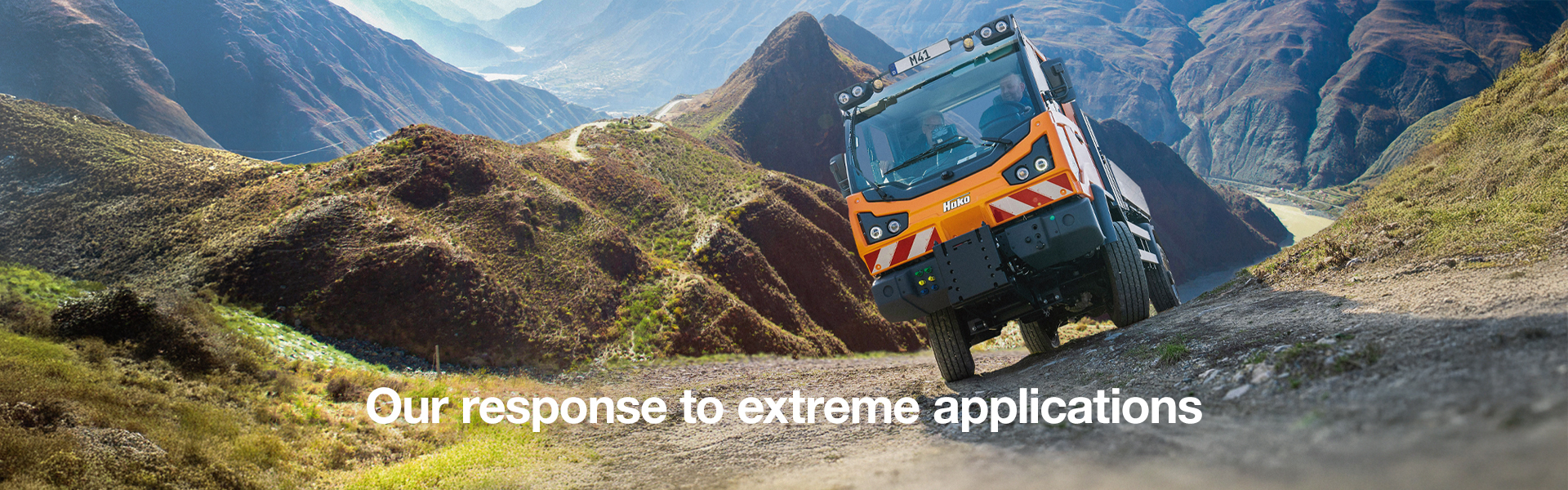

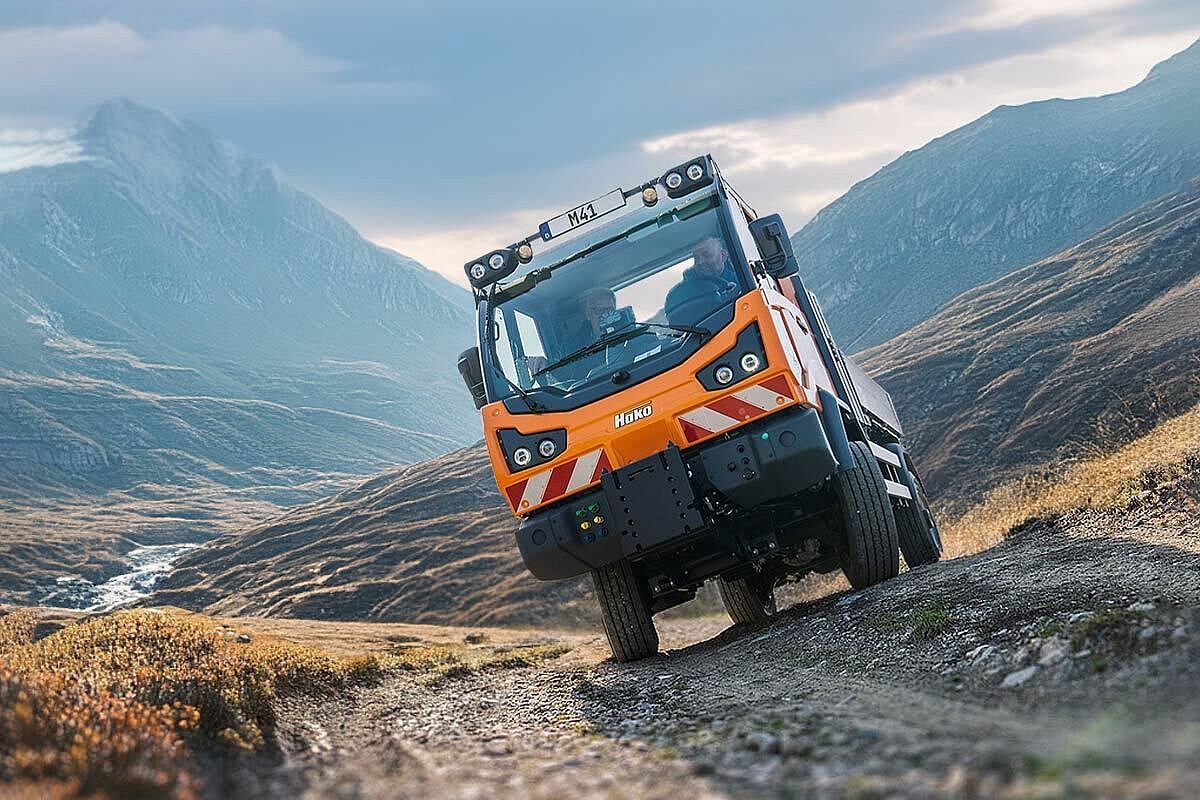

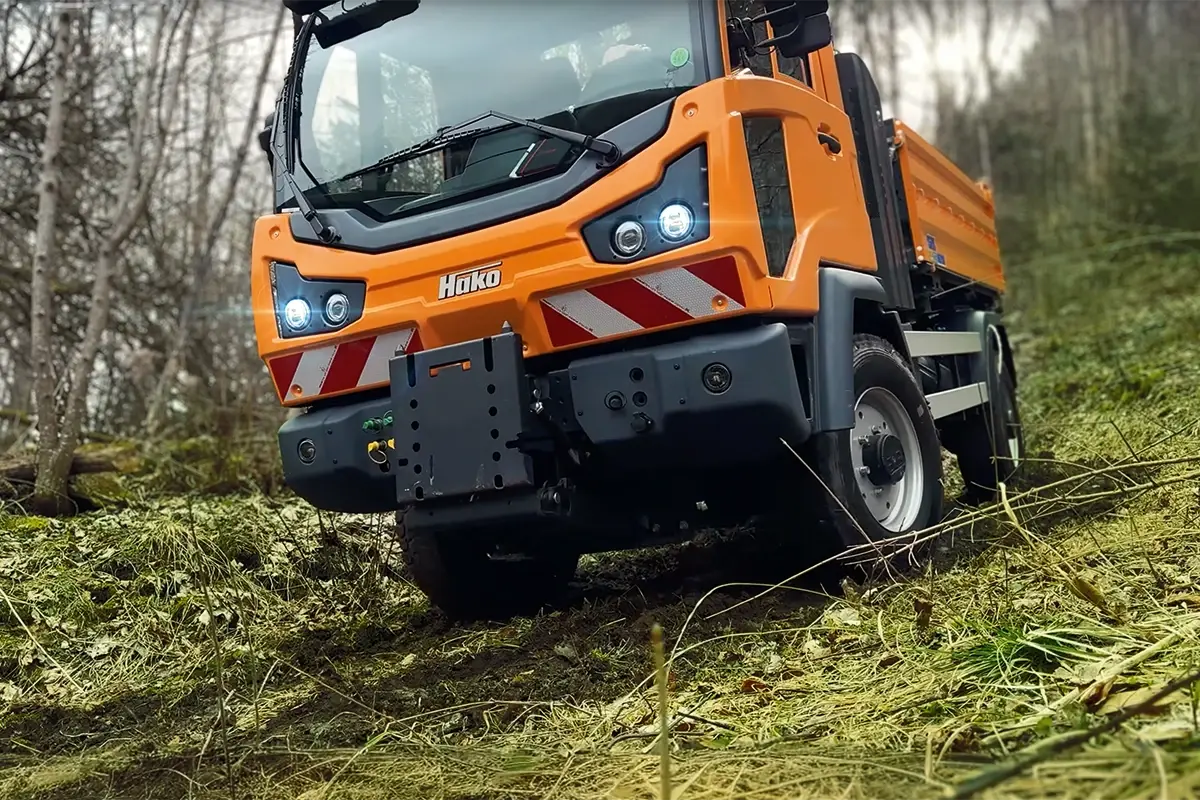

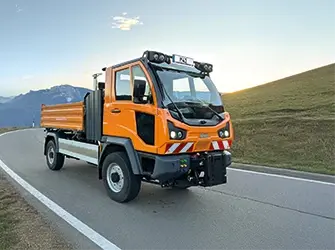

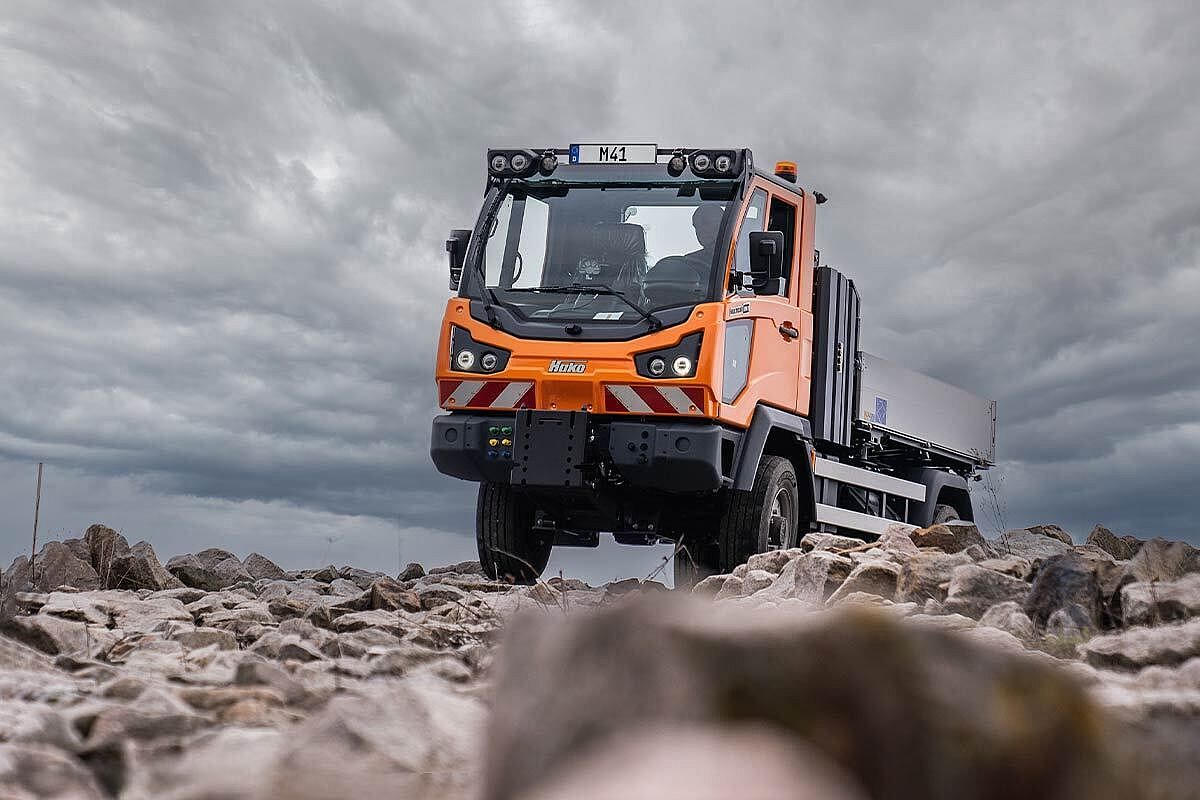

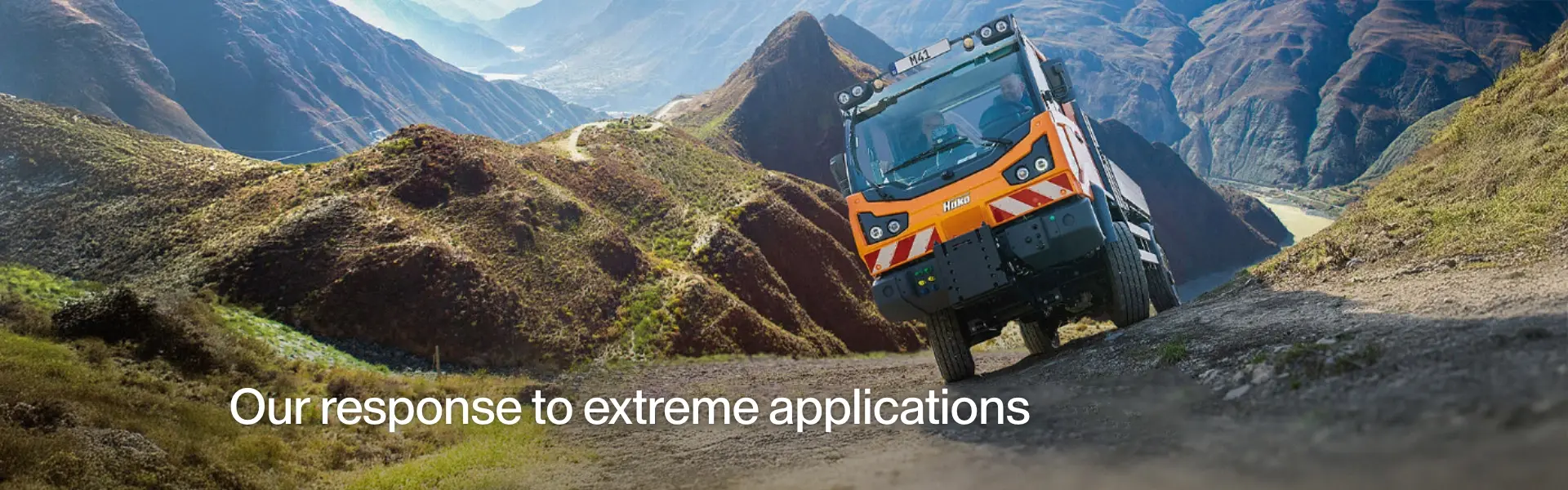

All-terrain, capable of climbing – Multicar M41!

The permanent all-wheel drive and optional all-wheel steering increase traction and manoeuvrability even on challenging terrain. The gradeability at 7.49 t GVW is approx. 45 %, and at unladen weight even 100 % despite the heavy vehicle class. The standard hill-hold function holds the vehicle in position when stopping on a slope until the electric parking brake engages automatically. This prevents the vehicle from rolling back unintentionally and makes it easier to start off.

All-terrain, capable of climbing – Multicar M41!

The permanent all-wheel drive and optional all-wheel steering increase traction and manoeuvrability even on challenging terrain

All-terrain, capable of climbing – Multicar M41!

The permanent all-wheel drive and optional all-wheel steering increase traction and manoeuvrability even on challenging terrain. The gradeability at 7.49 t GVW is approx. 45 %, and at unladen weight even 100 % despite the heavy vehicle class. The standard hill-hold function holds the vehicle in position when stopping on a slope until the electric parking brake engages automatically. This prevents the vehicle from rolling back unintentionally and makes it easier to start off.

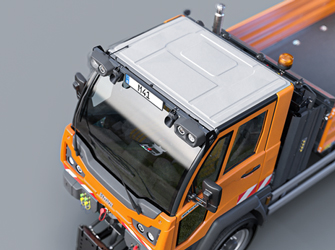

Multicar M41: High comfort, high performance!

Satisfaction promotes productivity. That’s why we have ergonomically optimised the design of the cab and equipped the machine with a wide range of safety features. The desirable side effects are that fatigue at work and absences due to illness are significantly reduced – while maximising driving pleasure.

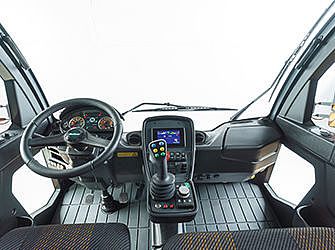

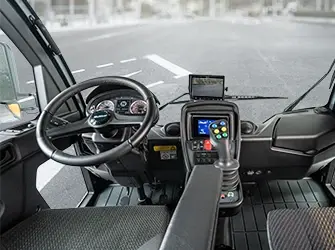

Ergonomic: well thought-out workplace design for back-friendly, fatigue-free working with all-round visibility of the working area.

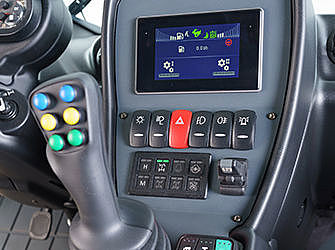

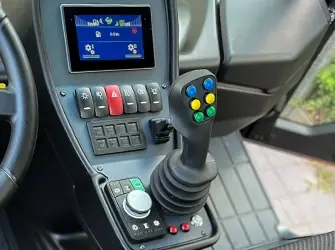

Everything under control: joystick with intuitive, sensitive control of the most important functions, clearly arranged control panel with easy-to-reach buttons and colour multifunction display.

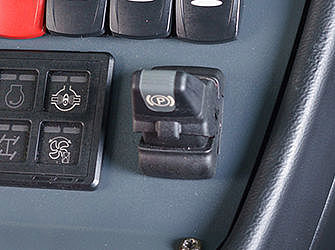

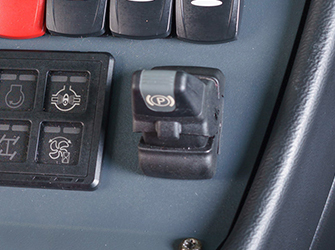

For more comfort and safety: electric parking brake that activates automatically.

Multicar M41: Multifunctional for year-round use!

Multicar M41: Multifunctional for year-round use!

Whether in the city, in gardening and landscaping, in the construction industry or in waste disposal: the Multicar M41 can be equipped with numerous attachments and superstructures for economical year-round use via universally usable interfaces.

Green area maintenance

Waste management

Sweeping

Transport

Winter service

Special applications

Wet cleaning

Road maintenance

Weed control

Waterjet technology

Sweeping

Transport

Winter service

Road maintenance

Wet cleaning

Special applications

Green area maintenance

Waterjet technology

Waste management

Weed control

Flexible in seasonal use – for example:

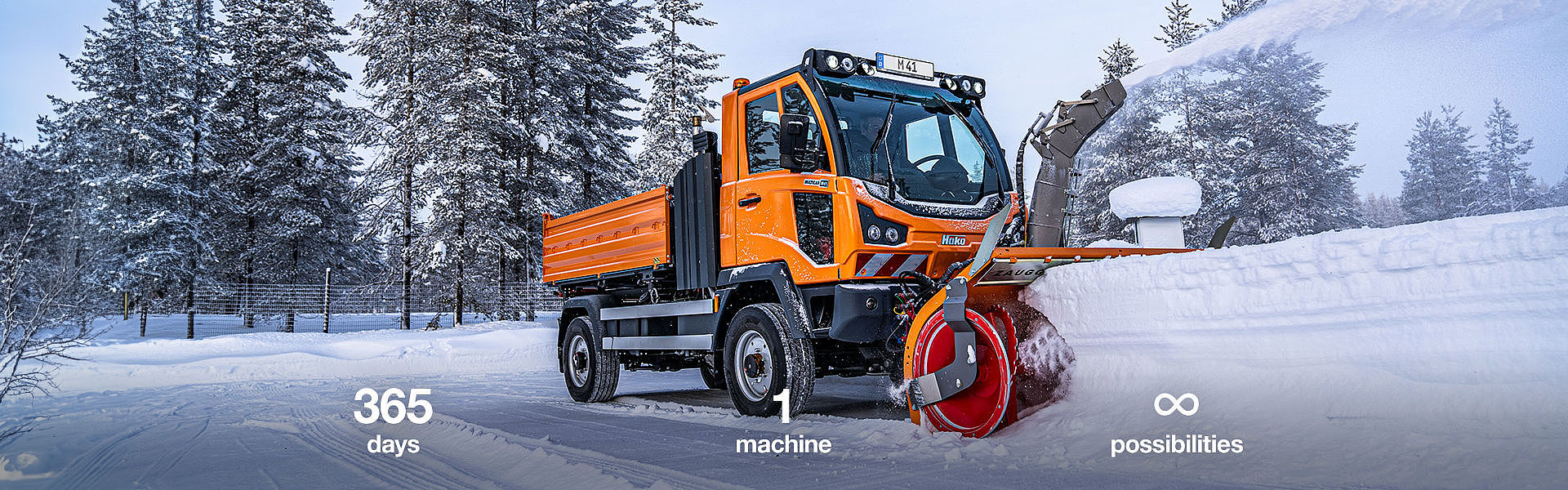

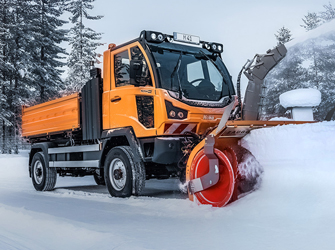

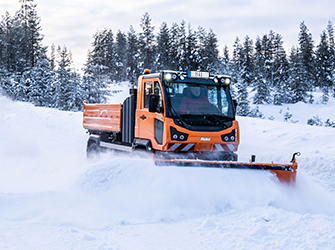

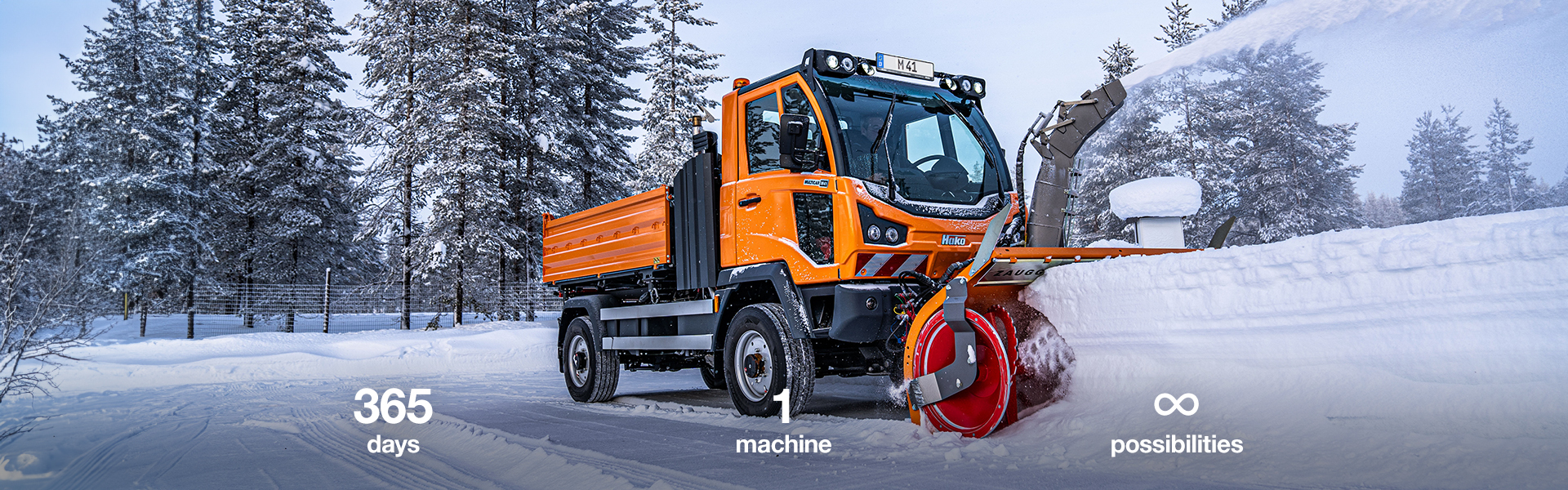

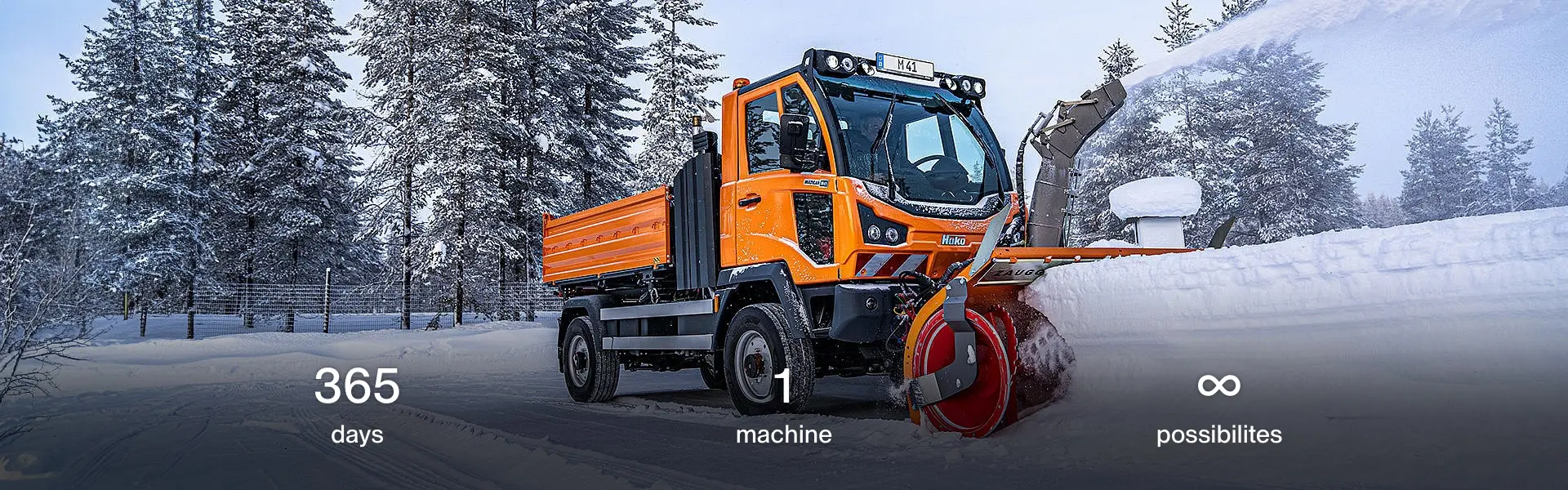

  • Winter service with snow ploughs or snow brushes
  • Sweeping work with front-mounted and suction sweepers
  • Cleaning with pressurised water or hand-operated cleaning and watering equipment
  • Mowing with cutter bars, rotary mowers, flail mowers, boom mowers and mower-suction combinations
  • Tree and shrub care, pruning from aerial work platforms, shredding and removal of cuttings

Flexible in seasonal use – for example:

  • Winter service with snow ploughs or snow brushes
  • Sweeping work with front-mounted and suction sweepers

Flexible in seasonal use – for example:

  • Winter service with snow ploughs or snow brushes
  • Sweeping work with front-mounted and suction sweepers
  • Cleaning with pressurised water or hand-operated cleaning and watering equipment
  • Mowing with cutter bars, rotary mowers, flail mowers, boom mowers and mower-suction combinations
  • Tree and shrub care, pruning from aerial work platforms, shredding and removal of cuttings

Year-round applications – for example:

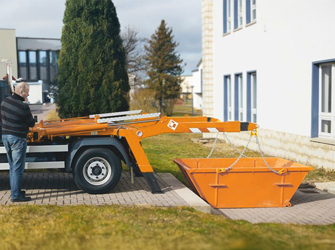

  • Transport work, e.g., on construction sites with three-way tipper or skip loader body

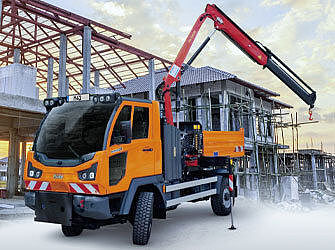

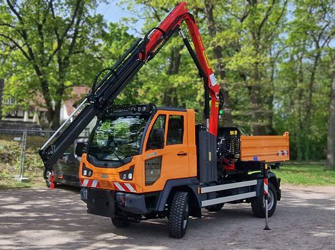

  • Also in combination with a loading crane or grapple
  • Waste disposal tasks

Year-round applications – for example:

  • Transport work, e.g., on construction sites with three-way tipper or skip loader body
  • Also in combination with a loading crane or grapple

Year-round applications – for example:

  • Transport work, e.g., on construction sites with three-way tipper or skip loader body
  • Also in combination with a loading crane or grapple
  • Waste disposal tasks

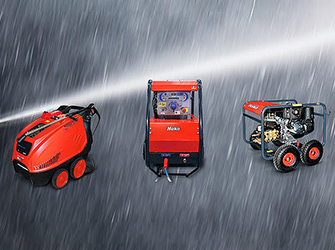

Strong team with Waterjet Technology:

Oertzen high-pressure cleaners can be easily transported on the loading bed of the Multicar M41 and used for many purposes, for example for removing stubborn dirt, oil residue, paint and rust or for cleaning pipes or containers.

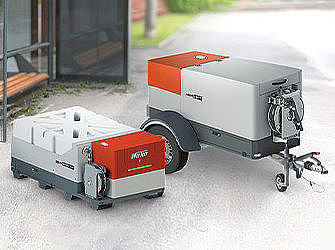

Just as practical: Weco weed control units with the additional functions of cold and hot water high-pressure cleaning and irrigation.



Strong team with Waterjet Technology:

Oertzen high-pressure cleaners can be easily transported on the loading bed of the Multicar M41 and used for many purposes.

Strong team with Waterjet Technology:

Oertzen high-pressure cleaners can be easily transported on the loading bed of the Multicar M41 and used for many purposes, for example for removing stubborn dirt, oil residue, paint and rust or for cleaning pipes or containers.

Just as practical: Weco weed control units with the additional functions of cold and hot water high-pressure cleaning and irrigation.

Multicar M41 and sustainability: environmentally friendly technologies for the future


It’s never too early for sustainability. That’s why the Multicar M41, for example, with its powerful 4-cylinder in-line diesel engine with 129 kW output, even fulfils the exhaust emission limits set by Euro VI-E. And exhaust gas aftertreatment is also guaranteed in all operating states.

Sustainability through service: the longer a machine is in use, the better its eco-balance. That’s why we provide well thought-out, intelligent services to ensure a long service life during which our solutions work efficiently and reliably.

Protecting people’s health: to prevent noise becoming a burden for the driver and the environment, we reduce noise emissions to the lowest possible level during operation. In the Multicar M41, the continuously variable drive ensures a low noise level even at high speeds.

Focus on the life cycle: when developing our machines, we think from start to finish – from production using environmentally friendly, CO2-saving processes in modern facilities to economical, environmentally friendly utilisation, recycling and disposal.

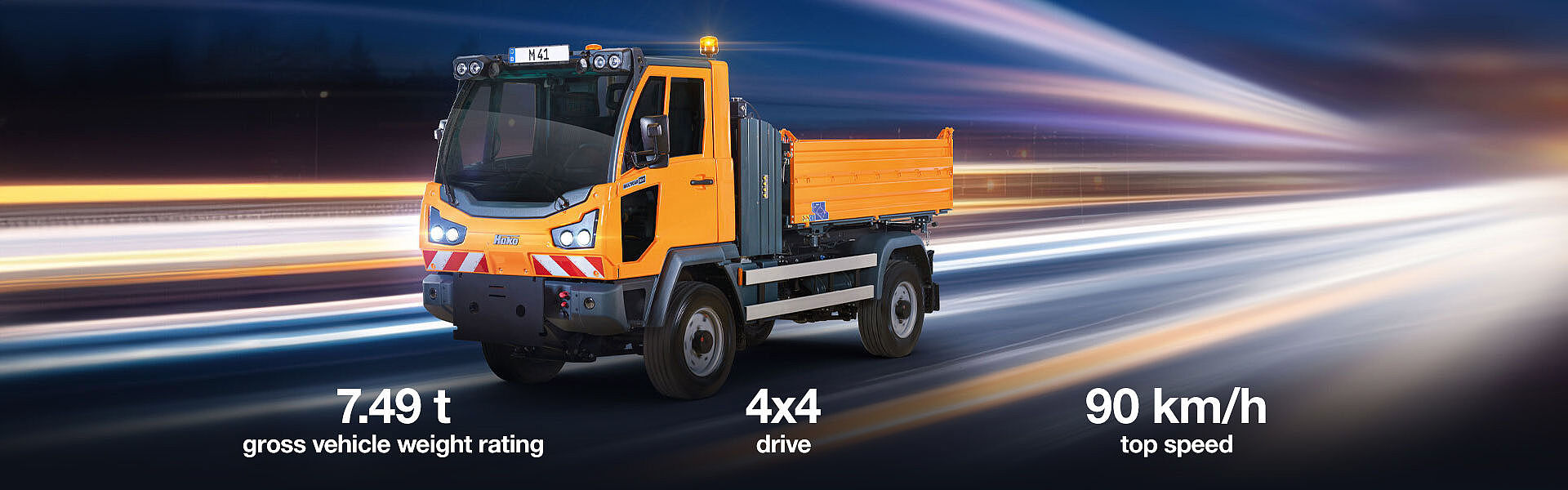

Multicar M41 at a glance

Multicar M41
EngineDiesel, 129 kW (175 hp)
Traction drive (type / V max.)4x4 (perm. all-wheel drive) / hydrostatic-mechanical, infinitely variable / 0–90 km/h
Dimensions basic vehicle (L x W x H)4,840 x 1,750 x 2,395 mm

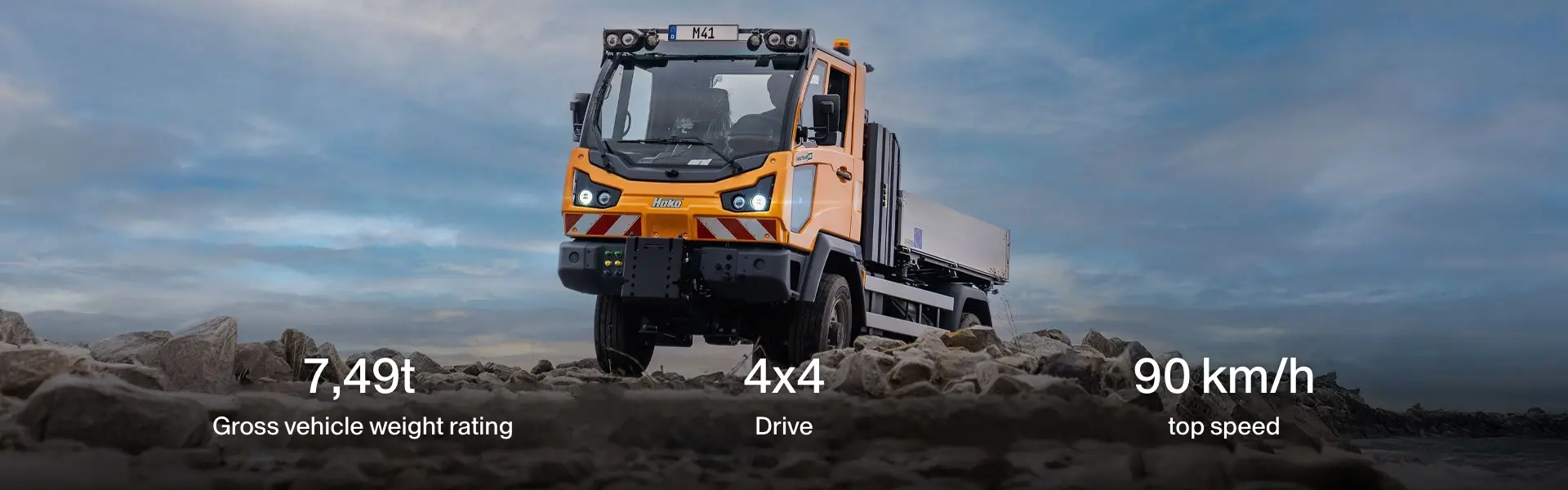

Weights basic vehicle (GVW / payload max.)7,490 kg / 4,250 kg
Suspensioncoil springs and additional rubber springs
