Max. flow rate 1,800 l/h

Max. working pressure 500 bar

Standard voltage 400 V

Oertzen C500-27 E

Cold water high-pressure cleaner for industrial use

Max. flow rate 1,800 l/h

Max. working pressure 500 bar

Standard voltage 400 V

High cleaning power combined with maximum safety


The Oertzen C500-27 E is stable, efficient and reliable. For special requirements, the high-pressure cleaner is also available as a stationary unit and in a version suitable for potentially explosive environments.

  • Five-cylinder in-line piston pump, flange-mounted with electric motor
  • Motor/pump speed: 1,450 rpm
  • Heavy-duty circumferential frame, powder-coated
  • Four-wheel trolley plus parking brake
  • Motor and pump are slow-running and quiet

Technical details

Spraying equipment

  • Single wand with standard HIP flat jet nozzle
  • Optionally interchangeable with a 65-degree spraying angle nozzle

 Unit safety

  • Integrated thermal valve protects against overheating
  • Integrated low water pressure cut-off prevents cavitation
  • Ultra-fine water filter prevents contamination



Frame

  • Heavy-duty circumferential frame, powder-coated
  • Optionally available in stainless steel for potentially explosive environments
Machine data
Accessories
Special equipment
Technical Data
Oertzen C500-27 E
Machine data

Motor and pump performance

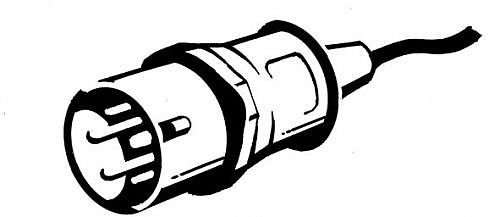

  • 400 V/3~50 Hz
  • Max. working pressure 500 bar / 7250 psi

Features

  • 5 cyl. inline plunger pump 30 l/min / 7.9 gal/min
  • brass pump head, ceramic plungers
  • tooth belt drive, maintenance free
  • Star Delta starting device
  • motor/pump rpm 1,420 1/min, slowly, quietly running machine
  • pump system pressureless by closing spray pistol (stand by operation)
  • thermo valve protects pump from overheating
  • water shortage control protects pump from cavitation
  • water micro filter protects pump from soiled water
  • motor/pump unit protected by solid, surrounding steel frame (powder coated)
  • chassis with 4 wheels on twin axle, locking brake
  • hose swivel prevents hp hose from curling up

Standard equipment

  • single lance 800 mm / 31 in (710.704.952)
  • HIP flat stream nozzle 2038 (710.742.038)
  • flat stream nozzles with 15/25/40/65° spray angle optional
  • high pressure security pistol 500 bar / 7250 psi 3/8" (710.704.940)
  • swivel joint (710.708.054)
  • PANZERJET high pressure safety hose NW 8, 10 m / 33 ft (710.702.064)

Application range

  • abrasive blasting
  • container cleaning
  • concrete restoration
  • floor cleaning
  • decoating
  • paint removal
  • facade cleaning
  • high pressure cleaning
  • industrial cleaning
  • drain cleaning
  • derusting
  • water-sand blasting
Accessories

710.708.050

Swivel joint, 3/8” / 330 bar, brass

  • 330 bar / 4786 psi
  • brass
  • mounted between pistol and hose
  • revents coiling up of hose

Product request



710.704.870

Foot valve, 500 bar

for actuating the spray lance/spray nozzle on stationary high pressure cleaners or high pressure drain cleaning with 500 bar / 7250 psi

Product request

710.703.081

GEKA coupling, brass / 3/4” ID

for connection of water hoses with high pressure cleaners or hydro extraction vacs, and also for extending water hoses

Product request

710.703.091

GEKA grommet, brass / 3/4” SL

brass, for connection of water hoses with high pressure cleaners or hydro extraction vacs, and also for extending water hoses

Product request

710.704.951

High pressure lance, 500 mm / 500 bar, VA

  • high pressure lance 1/2 "
  • 500 bar / 7250 psi
  • INOX
  • 500 mm / 19.7 in length
  • no-tool coupling

Product request

710.704.952

High pressure lance, 800 mm / 500 bar, VA

  • high pressure lance (single jet pipe)
  • 500 bar / 7250 psi
  • INOX
  • 800 mm / 31.5 in length
  • with side support handle
  • no-tool coupling

Product request

710.704.953

High pressure lance, 1,000 mm / 500 bar, VA

  • high pressure lance (single jet pipe)
  • 500 bar / 7250 psi
  • INOX
  • 1000 mm / 39 in length
  • with side support handle
  • no-tool coupling

Product request

710.703.132

HV removable nipple, 3/8” ID x OE2, brass

Manual screw connection interchangeable nipple (hose connector for PANZERJET high-pressure safety hose)  3/8” ID x OE2, brass

Product request

710.704.940

HP safety gun, 500 bar, VA (servo-assisted)

  • ergonomically shaped
  • best thermal insulation
  • servo-relieved for fatigue-free working
  • housing made of impact-resistant, glass fibre reinforced Makrolon
  • can be locked in the closed position

Product request

710.800.270

Soft sandblaster MONSUN 055

small-area water-sandblaster, for abrasive surface treatment such as concrete repair, decoating, derusting

  • pressure range 100 – 500 bar / 1450 – 7250 psi
  • for most effective blasting with lowest possible consumption of blasting agent
  • with 10 m / 33 ft suction hose and duplex suction pipe for blasting agent

Product request



710.800.225

Wet overalls, size 46/48

  • size M (46/48)
  • water-proof polyamide fiber with zipper and velcro fastener on sleeves and trousers
  • durable
  • colour: orange-red



Product request

710.800.226

Wet overalls, size 50/52

  • size L (50-52)
  • water-proof polyamide fiber with zipper and velcro fastener on sleeves and trousers
  • durable
  • colour: orange-red

Product request

710.800.227

Wet overalls, size 54/56

  • size XL (54-56)
  • water-proof polyamide fiber with zipper and velcro fastener on sleeves and trousers
  • durable
  • colour: orange-red



Product request

710.800.228

Wet overalls, size 58/60

  • size XXL (58-60)
  • water-proof polyamide fiber with zipper and velcro fastener on sleeves and trousers
  • durable
  • colour: orange-red

Product request

710.801.099

OSP Special Hypoid Pump Oil, 1 l canister

OSP Special Hypoid Pump Oil

  • 1 l / 0.26 gal canister
  • for OERTZEN high pressure axial piston pumps, first oil change after 50 working hours, all further oil changes after 500 working hours respectively at least once a year

to maintain the warranty use OSP Special Hypoid Pump Oil only

Product request

710.802.003

OSP Special Hypoid Pump Oil, 5 l canister

OSP Special Hypoid Pump Oil

  • 5 l / 1.3 gal canister
  • for OERTZEN high pressure axial piston pumps, first oil change after 50 working hours, all further oil changes after 500 working hours respectively at least once a year

to maintain the warranty use OSP Special Hypoid Pump Oil only

Product request



710.702.079

PANZERJET 2 m hose, 500 bar ISO

PANZERJET high pressure safety hose

  • 3/8"
  • nominal diameter 8
  • max. 500 bar / 7250 psi
  • 150°C / 302°F
  • 2 m / 6.5 ft length

Option: Ex design for operation in explosion endangered areas

Product request



710.702.078

PANZERJET 4 m hose, 500 bar ISO

PANZERJET high pressure safety hose

  • 3/8"
  • nominal diameter 8
  • max. 500 bar / 7250 psi
  • 150°C / 302°F
  • 4 m / 13 ft length

Option: Ex design for operation in explosion endangered areas

Product request



710.702.064

PANZERJET 10 m hose, 500 bar ISO

PANZERJET high pressure safety hose

  • 3/8"
  • nominal diameter 8
  • max. 500 bar / 7250 psi
  • 150°C / 302°F
  • 10 m / 32.8 ft length

Option: Ex design for operation in explosion endangered areas

Product request



710.702.065

PANZERJET 15 m hose, 500 bar ISO

PANZERJET high pressure safety hose

  • 3/8"
  • nominal diameter 8
  • max. 500 bar / 7250 psi
  • 150°C / 302°F
  • 15 m / 49 ft length

Option: Ex design for operation in explosion endangered areas

Product request



710.702.066

PANZERJET 20 m hose, 500 bar ISO

PANZERJET high pressure safety hose

  • 3/8"
  • nominal diameter 8
  • max. 500 bar / 7250 psi
  • 150°C / 302°F
  • 20 m / 65.6 ft length

Option: Ex design for operation in explosion endangered areas

Product request



710.702.099

PANZERJET 25 m hose, 500 bar ISO

PANZERJET high pressure safety hose

  • 3/8"
  • nominal diameter 8
  • max. 500 bar / 7250 psi
  • 150°C / 302°F
  • 25 m / 82 ft length

Option: Ex design for operation in explosion endangered areas

Product request



710.702.074

PANZERJET 30 m hose, 500 bar ISO

PANZERJET high pressure safety hose

  • 3/8"
  • nominal diameter 8
  • max. 500 bar / 7250 psi
  • 150°C / 302°F
  • 30 m / 98.4 ft length

Option: Ex design for operation in explosion endangered areas

Product request



710.702.076

PANZERJET 40 m hose, 500 bar ISO

PANZERJET high pressure safety hose

  • 3/8"
  • nominal diameter 8
  • max. 500 bar / 7250 psi
  • 150°C / 302°F
  • 40 m / 131 ft length

Option: Ex design for operation in explosion endangered areas

Product request



710.702.077

PANZERJET 50 m hose, 500 bar ISO

PANZERJET high pressure safety hose

  • 3/8"
  • nominal diameter 8
  • max. 500 bar / 7250 psi
  • 150°C / 302°F
  • 50 m / 164 ft length

Option: Ex design for operation in explosion endangered areas

Product request

710.702.080

PANZERJET 60 m hose, 500 bar ISO

PANZERJET high pressure safety hose

  • 3/8"
  • nominal diameter 8
  • max. 500 bar / 7250 psi
  • 150°C / 302°F
  • 60 m / 197 ft length

Option: Ex design for operation in explosion endangered areas

Product request



710.702.082

PANZERJET 100 m hose, 500 bar ISO

PANZERJET high pressure safety hose

  • 3/8"
  • nominal diameter 8
  • max. 500 bar / 7250 psi
  • 150°C / 302°F
  • 100 m / 328 ft length

Option: Ex design for operation in explosion endangered areas

Product request

710.701.003

PVC hose, 13 mm, fabric-mesh reinforced (sold by the metre)

Suction hose for sand blasting agent made of PVC

  • fabric-mesh reinforced
  • diameter 13 mm / 0.5 in
  • sold by the meter

Product request

710.800.061

Drain cleaning set, 33 m / 500 bar, without reel

for removal of blockings, grease and sand in production drains and pipes up to 350 mm / 13.6 in diameter

  • industrial version
  • with drain cleaning hose 33 m / 108 ft
  • max. 500 bar / 7250 psi
  • manually exchangeable 3/8" rocket nozzle and rocket drill-nozzle
  • ball valve
  • other lengths of hose on request
  • 710.800.060 with 53 m / 174 ft drain cleaning hose

Product request

710.800.059

Drain cleaning set, 33 m / 500 bar, with reel

like drain cleaning set 710.800.061 plus hose reel (500 bar / 7250 psi), for removal of blockings, grease and sand in production drains and pipes up to 350 mm / 13.6 in diameter

  • industrial version
  • with drain cleaning hose 33 m / 108 ft
  • max. 500 bar / 7250 psi
  • manually exchangeable 3/8" rocket nozzle and rocket drill-nozzle
  • ball valve
  • other lengths of hose on request

Product request

710.719.777

3/8” rocket drill nozzle for drain cleaning, VA 777 (052)

  • drain cleaning rocket drill nozzle 3/8" INOX (052)
  • 500 bar / 7250 psi max.
  • prescribed for OERTZEN cold water stationary unit C.S210-30 E

Product request

710.719.088

3/8” rocket nozzle for drain cleaning, VA 088 (055)

  • drain cleaning rocket nozzle 3/8" INOX (055)
  • 500 bar / 7250 psi max.

Product request

710.722.318

3/8” turbo rocket nozzle for drain cleaning, 30 mm / 065 VA

  • drain cleaning turbo (rotating) rocket nozzle 3/8" INOX 065
  • 250 bar / 3625 psi max.

Product request

710.800.259

Sand suction nipple (1x)

Wear part, connects water-sand blasting nozzle via PVC hose with blasting agent container

Product request

710.800.350

Mobile sand container with TORNADO suction grip

sand-/blasting agent container

  • 80 litres
  • with sand suction group
  • mobile

Product request

710.800.410

High pressure sludge pump 05

A sludge pump connected to the high pressure cleaner pumps sludge and fluids up to a height of 5 m according to the Venturi principle (partial vacuum – the flow rate depends on the capacity of the high pressure cleaner).

  • residue-free suction
  • for tanks, barrels, pits, shafts, etc.
  • suction hose diameter 1 1/2”
  • hose length 3.5 m / 11.5 ft

Product request

710.703.011

Hose clamp, 20–32 mm / INOX

hose clamp 32 - 50 mm / 1.2 - 1.9 in, INOX, for water hoses with 3/4" inner diameter

Product request

710.800.777

Hose reel, portable, for high-pressure trailer

for 20 m / 66 ft high pressure hose

  • plastic
  • with metal handle
  • portable
  • pic. shows optional PANZERJET high pressure hose (option)

Product request

710.800.352

TORNADO safety helmet, complete, red

with wire mesh visor, ear protectors and protective goggles

Product request

710.756.055

Turbo blaster 055 (400 bar)

Special nozzle with rotating point jet to achieve high impact pressure together with high surface cleaning capacity, for high pressure cleaners up to 400 bar / 5800 psi working pressure

Product request

710.000.941

Cartridge 5” / 50 µm (1x)

  • made of polypropylene
  • reliably retains all particles larger than 50 micrometers (µ)
  • for protection of high pressure cleaner from dirty operating water
  • recommended when operating at construction site
  • packaging size 5 pcs.

Product request

710.000.942

Cartridge 9.75” / 50 µm (1x)

Water filter cartridge 9.75"

  • made of polypropylene
  • reliably retains all particles larger than 50 micrometers (µ)
  • for protection of high pressure cleaner from dirty operating water
  • recommended when operating at construction site
  • packaging size 5 pcs.

Product request

710.701.021

Water hose 3/4” / 20 bar, EPDM (sold by the metre)

  • quality water hose 3/4" inner diameter
  • sold by the metre
  • multi-layer braided textile sleeving max. 20 bar / 290 psi
  • internal and external rubber made of EPDM
  • max. 120°C / 248°F
  • resistant to oil and chemicals
  • other lengths and diametres on request
  • also with GEKA bajonet coupling on both ends available

Product request

Special equipment

Please note

The installation of special equipment/options may result in changes to the dimensions of the machine.

The installation of special equipment/options may result in changes to the dimensions of the machine. Please note this.

on request

Seawater/DI water version

  • all water-bearing parts chemically nickel-plated
  • unit can be operated with seawater or completely demineralized (DI) water

on request

Stainless steel version

  • stainless steel frame
  • electropolished

on request

Stainless steel version, stationary

for wall or base mounting

on request

Oertzen C500-27 E Ex explosion proof

for working in potentially explosive areas: Oertzen C500-27 E Ex T3

on request

Safety Control Stop

switches motor off during long periods of standby

710.000.694

VacLav 1 Special voltage 440 V / 3~60 Hz

  • electric motor, three phases
  • frequency 60 Hz
  • without plug

on request

End plate, long

for mounting the optional hose reel

on request

Water supply / water tank

e.g. for DIN 1988 backflow prevention

Technical Data

Flow rate max.

1,800 l/h / 475 gal/h

Unloading pressure

530 bar / 7,685 psi

Working pressure max.

500 bar / 7,250 psi

Water temperature max.

cold water

Standard voltage

400 V/3~50 Hz

Pump speed

1,420 1/min

Power source

electric motor

Connecting power

22.5 kW

Thermo valve

standard

Safety Control Stop SCS

option

Dimensions (frame: L x W x H)

960 x 780 x 860 mm / 37.4 x 30.4 x 33.5 in

Weight

260 kg / 573 lb

Order number

710.000.480

Please notice

technical data are subject to alterations

Are you interested in this product?Get in touch
Back to Top
